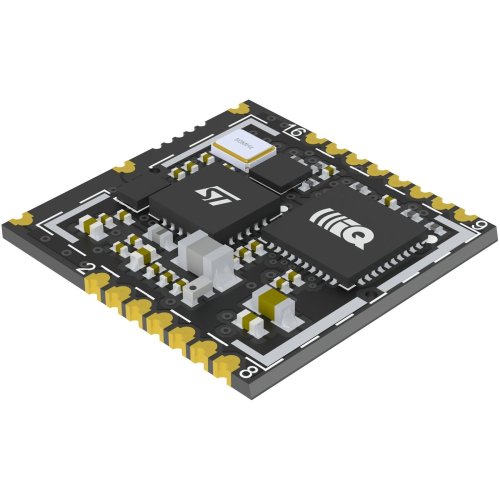

TR-76G

TR-76G
Add to favourites Add to compare list

TR-76G

New

Powerful IQRF wireless transceiver designed for SMT mounting and connection of external antenna. Larger code and RAM memories. Cost-effective solution for larger production runs.
More

Manufacturer: IQRF Tech s.r.o.Product code: IQRFTR76GShipping and Payment

19,68 EUR excl. VAT, 23,81 EUR incl. VAT

Volume discount

quantity 1-19 20-99 100-999 1000+
price / unit 19,68 EUR 15,47 EUR 11,47 EUR 9,48 EUR

* after adding to the cart, the price is recalculated according to the selected quantity
** for larger quantities ask for the project price here
*** 5% discount for registered customer is deducted from the above price

Specify product selection
In stock
pcs

Powerful IQRF wireless transceiver designed for SMT mounting and connection of external antenna. Larger code and RAM memories. Cost-effective solution for larger production runs.
More

Manufacturer: IQRF Tech s.r.o.Product code: IQRFTR76GShipping and Payment

IMPORTANT NOTE: Allowed TR types combinations in one network.

TR-76G is a family of IQRF transceiver modules operating in the 868 MHz and 916 MHz license free ISM (Industry, Scientific and Medical) frequency band. Its highly integrated ready-to-use design containing MCU, RF circuitry, serial EEPROM and optional on-board antenna requires no external components. SMT mounting and very small dimensions allow space saving. Ultra low power consumption fits for battery powered applications. Flexible MCU pins enable extended functionality and simpler application circuitry and PCB. Extended MCU memories include built-in operating system which significantly reduces application development time. Optional DPA framework supports applications even without programming.

Possible applications:

  • Bidirectional RF communication
  • Point-to-point or network wireless connectivity
  • Telemetry, AMR (automatic meter reading)
  • WSN (wireless sensor network)
  • Building automation
  • Street lighting control
  • Wireless monitoring, control and regulation
  • Remote data acquisition
  • RF connectivity in many other fields
  • Also for municipal and indoor areas
  • Internet of Things

For more information: Datasheet TR-76Gx

Parameters
Mounting SMT
Antenna connection Soldering pad-hole
Temperature sensor NO
Pins 18
I/O 12
RF power (mW) 10
RF band (MHz) 868, 916
Memory: Program (Flash) – non-DPA 8640 instructions
Memory: Program (Flash) – DPA (Custom DPA handler) 5344 instructions
Memory: RAM (non-DPA as well as DPA) 128 B
