TR-72GAT

New

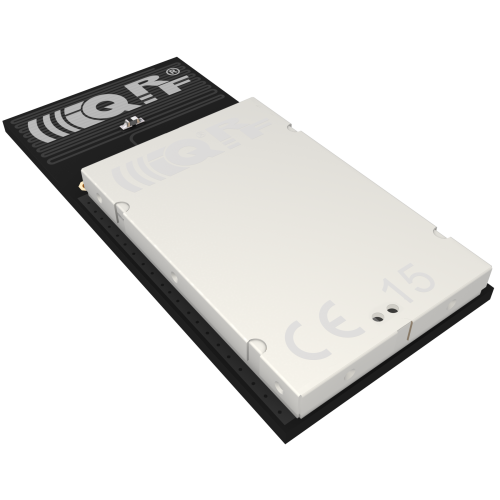

Powerful IQRF wireless transceiver with integrated antenna and temperature sensor is designed for mounting into SIM connector. MCU with extended memories and more flexible pins. Ideal for starting with IQRF.
More

Manufacturer: IQRF Tech s.r.o.Product code: IQRFTR72GATShipping and Payment

21,42 EUR excl. VAT, 25,92 EUR incl. VAT

Volume discount

quantity 1-19 20-99 100-999 1000+
price / unit 21,42 EUR 16,82 EUR 13,23 EUR 10,75 EUR

* after adding to the cart, the price is recalculated according to the selected quantity
** for larger quantities ask for the project price here
*** 5% discount for registered customer is deducted from the above price

Specify product selection
In stock
pcs

Powerful IQRF wireless transceiver with integrated antenna and temperature sensor is designed for mounting into SIM connector. MCU with extended memories and more flexible pins. Ideal for starting with IQRF.
More

Manufacturer: IQRF Tech s.r.o.Product code: IQRFTR72GATShipping and Payment

TR-72G is a family of IQRF transceiver modules operating in the 868 MHz and 916 MHz license free ISM (Industry, Scientific and Medical) frequency band. Its highly integrated ready-to-use design containing MCU, RF circuitry, integrated LDO regulator, serial EEPROM, optional temperature sensor and optional on-board antenna requires no external components. Ultra low power consumption fits for battery powered applications. Flexible MCU pins enable extended functionality and simpler application circuitry and PCB. Extended MCU memories include built-in operating system which significantly reduces application development time. Optional DPA framework supports applications even without programming.

Possible applications:

  • Bidirectional RF communication
  • Point-to-point or network wireless connectivity
  • Telemetry, AMR (automatic meter reading)
  • WSN (wireless sensor network)
  • Building automation
  • Street lighting control
  • Wireless monitoring, control and regulation
  • Remote data acquisition
  • RF connectivity in many other fields
  • Also for municipal and indoor areas
  • Internet of Things

For more information: Datasheet TR-72Gx

Parameters
Mounting SIM
Antenna connection PCB
Temperature sensor YES
Pins 8
I/O 6
RF power (mW) 10
RF band (MHz) 868, 916
Memory: Program (Flash) – non-DPA 8640 instructions
Memory: Program (Flash) – DPA (Custom DPA handler) 5344 instructions
Memory: RAM (non-DPA as well as DPA) 128 B
