IQD-SE02-04B (Sensor SE02 T/H)

New

Indoor wireless monitoring of temperature and relative humidity.
More

Manufacturer: MICRORISCProduct code: IQRFIQDSE0204BShipping and Payment

48 EUR excl. VAT, 58,08 EUR incl. VAT

Volume discount

quantity 1-19 20+
price / unit 48 EUR SPA

* after adding to the cart, the price is recalculated according to the selected quantity
** for larger quantities ask for the project price here
*** 5% discount for registered customer is deducted from the above price

In stock
pcs

Indoor wireless monitoring of temperature and relative humidity.
More

Manufacturer: MICRORISCProduct code: IQRFIQDSE0204BShipping and Payment

IMPORTANT: The product is delivered with the latest FW version. If you require a different version, please specify it in the order notes.

IQD-SE02

A family of generic indoor multifunctional low power sensor devices monitoring temperature, relative humidity, illumination, position, and magnetic contact state.

Measured data are periodically acquired by the sensor and wirelessly transmitted to aggregating repeaters, from where they are further propagated to the central point (gateway).

Key features

  • IQRF wireless Mesh connectivity
  • Beaming sensor allowing data collection by Aggregating repeaters
  • Observes the IQRF Standard sensor specification
  • Extra low power. Battery lifetime 5 years typical.
  • 868 MHz (916 MHz on request)
  • RF range:
      • Tens of meters in buildings (depends on the environment and obstacles)
      • Up to 350 m in free space

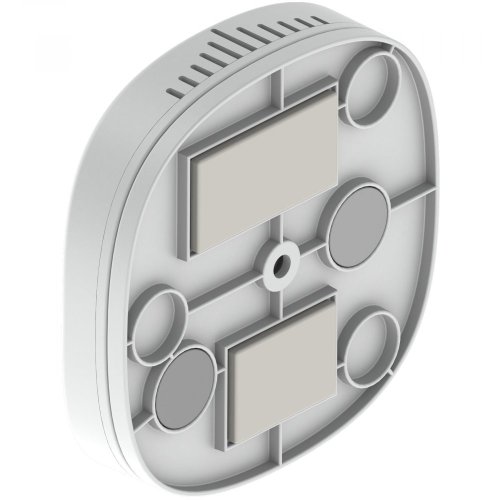

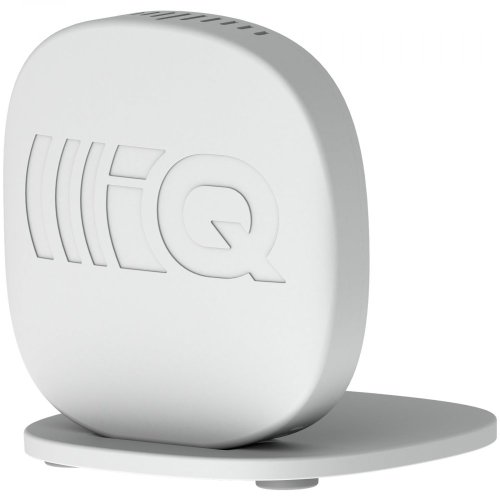

  • Indoor, to be mounted on the wall or put on the stand
  • Ingress protection: IP40
  • NFC (including EEPROM memory) for contactless bonding and other service tasks

Sensors

  • Temperature meter
  • Relative humidity meter
  • Light detector
  • 3G sensor
  • Magnetic switch (Hall sensor or reed contact)
  • Binary input (Hall sensor)
  • Buzzer

Individual sensors are optional, depending on the device variant.

Applications

  • Monitoring of buildings, rooms, laboratory conditions, etc.
  • Heating and ventilation control
  • Counting of events (number of switching the binary input, light, etc.)
  • Detection of vibrations or seat occupation
  • Illumination measurement or detection
  • Wireless 3D environment monitoring systems
  • Smart house, environmental
  • Internet of Things

You can find more information here.
