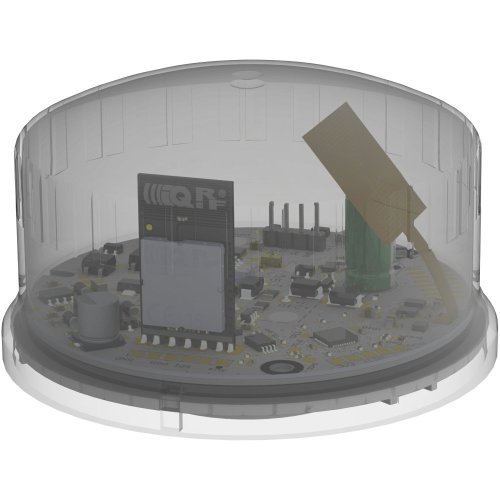

IQD-LCZH02-04D


Wireless lighting controller with Zhaga connector, digital bus interface and thermometer.
More

Manufacturer: MICRORISC s.r.o.Product code: IQDLCZH0204Shipping and Payment

90 EUR excl. VAT, 108,90 EUR incl. VAT

Volume discount

quantity 1+ ks
price / unit 90 EUR

* after adding to the cart, the price is recalculated according to the selected quantity
** for larger quantities ask for the project price here
*** 5% discount for registered customer is deducted from the above price

In stock
pcs

Wireless lighting controller with Zhaga connector, digital bus interface and thermometer.
More

Manufacturer: MICRORISC s.r.o.Product code: IQDLCZH0204Shipping and Payment

The IQD-LCZH02 outdoor light controller enables to control of street light lamps via the IQRF wireless mesh network. It is designed to be mounted on a lamp body equipped with the Zhaga connector. Control is possible via the digital or analog lighting interface. The digital interface works as a bidirectional data tunnel (bridge) to transfer data frames between IQRF and the IEC 62386 lighting standard. The analog interface controls the lamp using the 0-10 V voltage. The IQD-LCZH02 is an IQRF Interoperable device according to the IQRF Standard. Additionally, it serves also as an aggregating repeater.

Key features
● Outdoor, for mounting on a streetlight lamp with Zhaga connector
● Control via standard Digital Addressable Lighting Interface (IEC 62386 protocol) encapsulated into IQRF protocol
● Alternatively, variants with the 0-10 V analog control interface are available
● RTCC (real-time clock/calendar) with power backup (optional)
● GPS (optional)
● Temperature measurement inside the enclosure (for brief guidance only, optional)
● Illumination detector (for ambient light to dark differentiation only, optional)
● NFC for easy contactless including into the network
● Powered from 24 V DC. Active digital bus supply is provided.
● Repeater, creating a routing structure for other Nodes in the IQRF network and aggregating data from Beaming sensors.
● Autonomous control of luminaires (optional, preliminary)
● Interoperable, observing IQRF Standard

Applications
● Wirelessly controlled lighting
● Street light lamps
● Automation of cities
● Internet of Things
● For STD as well as STD+LP networks

User´s guide IQD-LCZH02
